Morel – MAXIMO ULTRA 602 HE MKII- 2-Way Component Speakers

MAXIMO ULTRA 602 HE MKII
THE HIGH-EFFICIENCY DESIGN OF THE MAXIMO ULTRA 602HE MKII SYSTEM WILL ENHANCE THE LISTENING EXPERIENCE OF YOUR FACTORY-AMPLIFIED OR LOW-POWER AUDIO SYSTEM. THIS 2-WAY COMPONENT SET USES AN EFFICIENT DESIGN TO GIVE IT SUBSTANTIAL OUTPUT AND A FULL, NATURAL SOUND WITHOUT THE NEED FOR A LARGE, COSTLY AMPLIFIER.
The powerful hybrid magnet motor system, composite paper cone and 25mm soft dome tweeter deliver a truly dynamic and musical performance.

The Maximo Ultra 602HE promises to offer best-in-class performance in an affordable package.

HIGH-GRADE FERRITE MAGNET
Ferrite magnets are the most commonly used in speakers. While they look similar, there are several grades of magnets. Morel uses only the highest intensity available in its designs. As a result, Morel’s magnetic systems are highly compact yet deliver more magnetic flux than conventional ferrite magnets.

HYBRID MAGNET MOTOR
The Hybrid motor drive system uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size. With Hybrid, more amplified power is converted into sonic energy for flawless performance, even in a small driver.\

MXR CROSSOVER
Morel Crossover Resolution (MXR) system combines high-quality components and varying features that improve the sound presentation and overall sound quality of Morel’s systems. The MXR crossover system is designed to ensure that drivers integrate seamlessly with minimum loss of signal quality to preserve the natural and tonal balance of our speakers.

PAPER CONE
In use since the first loudspeakers, paper continues to be an exceptional material of choice. Morel’s latest paper composite cones are ultra-lightweight, making them an exceptional pairing for drivers using smaller motors and voice coils.

Specification:

Speaker Size 6 1/2″
Design 2-way
Tweeter Design 1″ Dome
Impedance (Ohms) 4
Tweeter Composition Fabric
Woofer Composition Treated Paper Composite
Woofer Surround Rubber
Sensitivity (1W at 1 meter) N/A
Sensitivity at 2.83 volts 94
Frequency Response 60 – 22k Hz
Minimum RMS Wattage —
Maximum RMS Wattage 90
Peak Power Handling (Watts) 180

What’s Included:

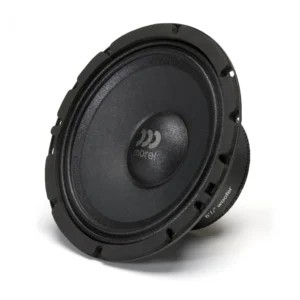

Two Woofers
Two Tweeters (with attached 38″ length of speaker wire)
2 Crossovers

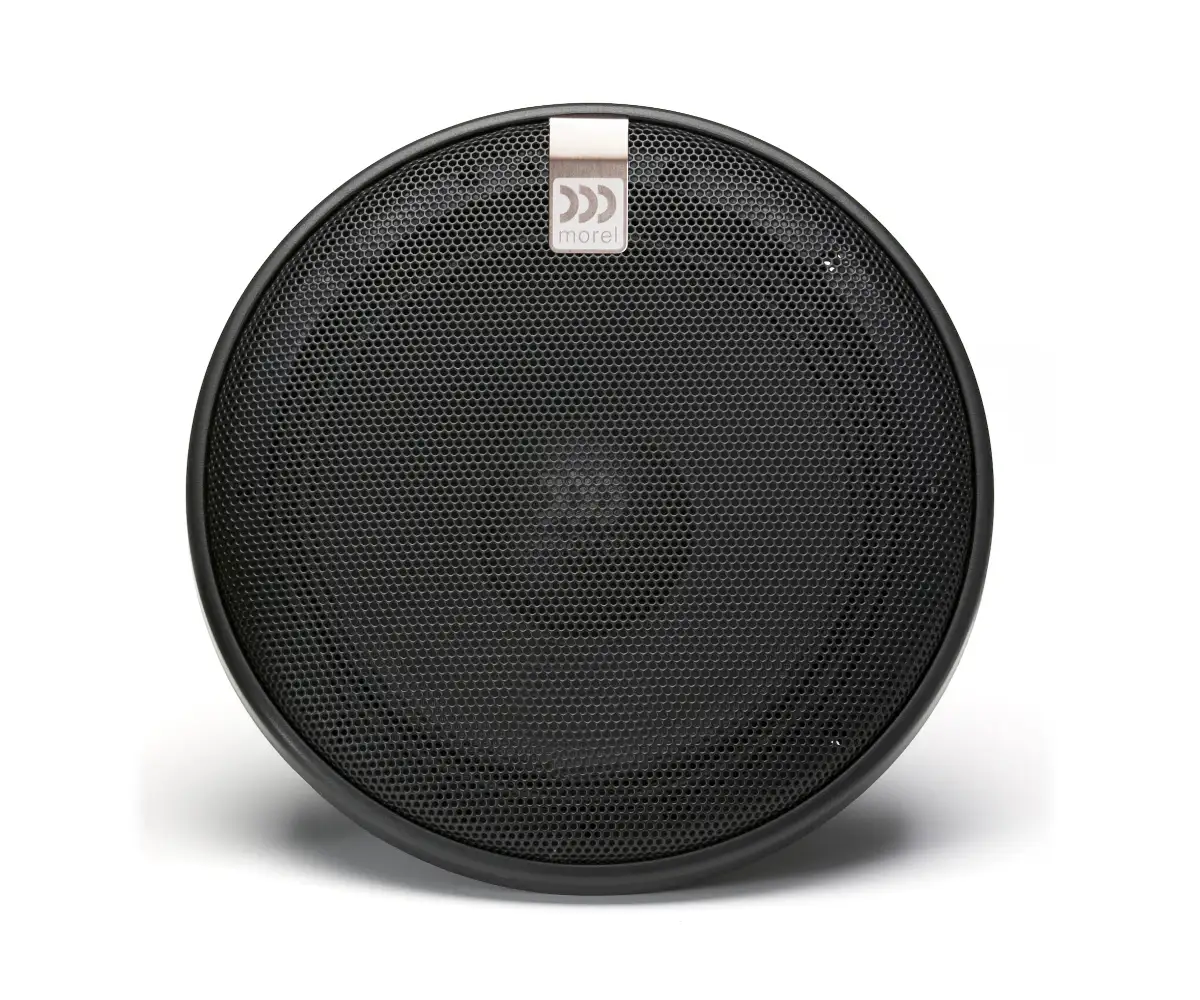

2 Woofer grilles
2 Woofer grille frames
Grille putty
2 Mesh tweeter grilles (installed)
2 Oval flush mount tweeter housings (with tweeters installed)
2 Flush mount brackets
2 Large angled surface mount tweeter housings
2 Small angled surface mount tweeter housings
